Surface Preparation Blasting Abrasives
MS Supply offer the list of abrasives are exceptional in quality and performance. They are imported from top quality manufactures worldwide. ABN can supply large quantity of abrasives like Garnet, Steel Shot, Steel Grit etc. to suit all your abrasive blasting applications from stock.

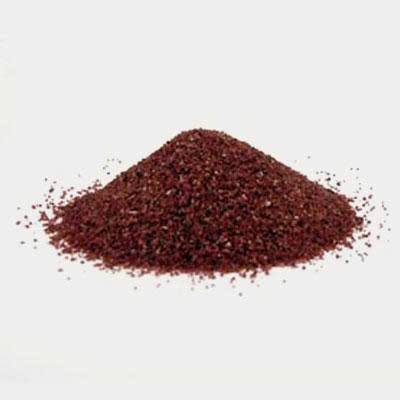

Garnet Sands
Garnet is the eco-friendly abrasive mineral in the world with its advantages far out reaching its alternatives. It is the hardest amongst Garnet varieties and its unique grain hardness and toughness guarantee productivity & efficiency.
Grades
Abrasive blasting grade
Blasting grades available:
Grade 12/24
Grade 20/40
Grade 30/60
Grade 80
Advantages of Garnet
The combination of tough mineral structure and rapid setting results in lower levels of dust creation during blasting
Superior surface profile – garnet grains create a uniform profile virtually free of embedment, providing an excellent surface for coating adhesion
The unique washing system using Attrition Scrubber ensures Chloride free product with low dust levels
Non toxic – inert and natural, crystalline silica levels are less than 1%
Recyclable up to 5 times
Easy clean up
Inert – will not interfere with your coatings
Non porous – will not draw moisture
Inert – will not interfere with your coatings
Non porous – will not draw moisture

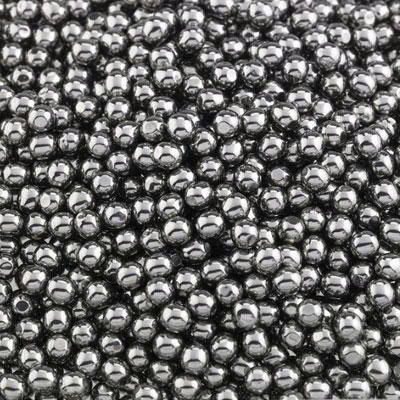

| Steel Shot | |
| Grade | Size in mm |
| S 70 | 0.125 – 0.425 |
| S 110 | 0.180 – 0.600 |
| S 170 | 0.355 – 0.850 |
| S 230 | 0.500 – 1.000 |
| S 280 | 0.600 – 1.180 |
| S 330 | 0.710 – 1.400 |
| S 390 | 0.850 – 1.700 |
| S 460 | 1.000 – 2.000 |
| S 550 | 0.180 – 2.000 |
| S 660 | 1.400 – 2.360 |

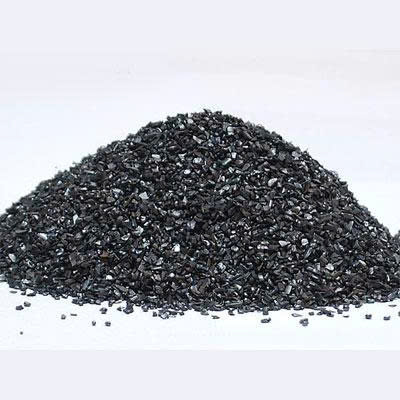

| Steel Grit | |
| Grade | Size in mm |
| G 12 | 1.400 – 2.360 |
| G 14 | 1.180 – 2.000 |
| G 16 | 1.000 – 1.700 |
| G 18 | 0.710 – 1.400 |
| G 25 | 0.425 – 1.1800 |
| G 40 | 0.300 – 1.000 |
| G 50 | 0.180 – 0.710 |
| G80 | 0.125 – 0.425 |
| G 120 | 0.075 – 0.300 |
| Copper Slag | |
| Grade | Size in mm |
| Turbo+ | 0.1 – 0.5 |
| Turbo | 0.2 – 1.0 |
| STD | 0.125 – 0.425 |
| STD+ | 0.2 – 1.4 |
| HD | 0.2 – 2.4 |
| HD+ | 0.5 – 2.5 |

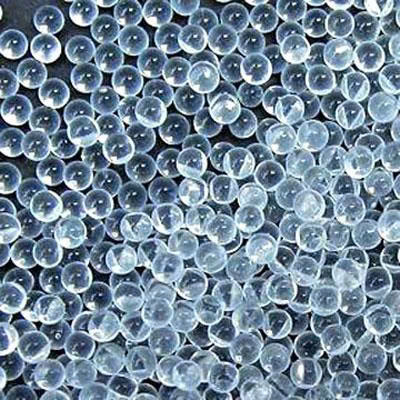

| Glass Beads |
| Grain Classed Available |
| 420 – 840 um |
| 420 – 590 um |
| 250 – 420 um |
| 180 – 300 um |
| 150 – 250 um |
| 105 – 210 um |
|
|

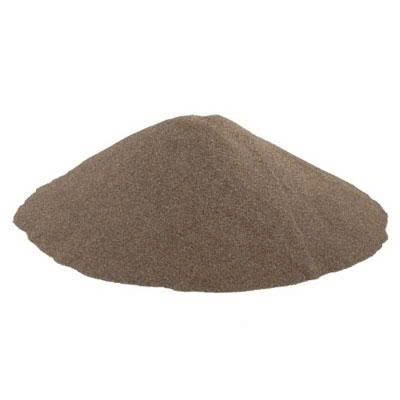

| Aluminium Oxide | |
| Grade | Size in mm |
| 20 | 710 -1180 |
| 36 | 350 – 600 |
| 60 | 180 – 300 |
| 80 | 125 – 212 |
| 100 | 75 – 150 |
|
|
|
| Garnet | |
| Size Range Mesh Astm | Size in mm |
| 12/24 | 1.710 – 1.400 |
| 20/40 | 0.420 – 0.850 |
| 20/60 | 0.250 – 0.850 |
| 30/60 | 0.250 – 0.600 |
| #80 | 0.180 – 0.300 |
